How to Build an Intelligent WhatsApp Chatbot with n8n: Complete Automation Guide
In today's world, automating customer communication has become a key element of business success. WhatsApp, as one of the most popular communication platforms globally, offers enormous potential for companies looking to improve customer service. In this article, I'll show you how to create an advanced WhatsApp chatbot using n8n, OpenAI, and vector storage technology.
What Is This Chatbot and Why Do You Need It?
Our WhatsApp chatbot is an intelligent sales agent that:
- Automatically responds to customer questions 24/7
- Uses current product catalog as a knowledge source
- Remembers conversation context with each customer
- Filters different message types and responds accordingly
- Scales automatically without additional personnel costs
Solution Architecture: Two Main Parts
1. Knowledge Base Creation (Vector Store)
The first part of the workflow is responsible for preparing the "brain" of our chatbot:
Step-by-step process:
- Download product brochure (PDF) from the internet
- Extract text from PDF document
- Split text into smaller fragments (chunking)
- Convert fragments to embeddings using OpenAI
- Store in in-memory vector database
Why Vector Store? Vector store is a modern technology that enables semantic information search. Instead of looking for exact keywords, our AI understands the meaning of questions and finds the most relevant documentation fragments.
2. WhatsApp Conversation Handling
The second part is the heart of our chatbot:
Intelligent communication flow:
- Listen for WhatsApp messages
- Filter message types (text only)
- Pass to AI Agent with access to knowledge base
- Maintain conversation context for each user
- Send responses back to WhatsApp
Key Technical Components
HTTP Request + PDF Extraction
Brochure URL → PDF Download → Text Extraction
Automatic downloading and processing of product documentation ensures the chatbot always has access to the latest information.
Recursive Character Text Splitter
Splits long documents into 2000-character fragments without overlap. This is crucial for effective semantic search.
OpenAI Embeddings + In-Memory Vector Store
- Model:
text-embedding-3-small - Memory key:
whatsapp-75 - Clear on update: Yes
Langchain Agent with Memory
- GPT Model:
gpt-4o-2024-08-06 - Window memory: Individual for each phone number
- Vector tool:
query_product_brochure

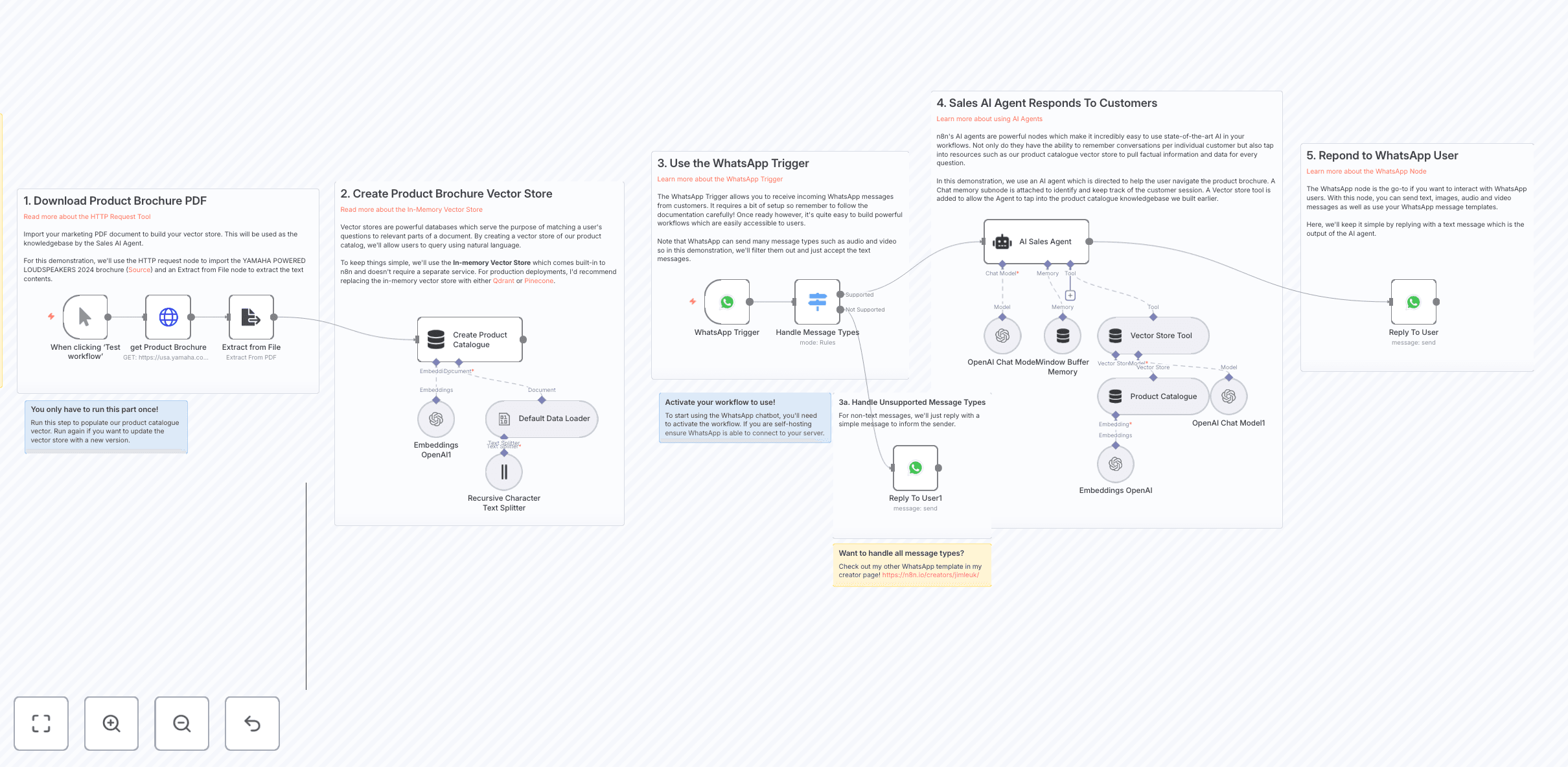

Implementation Process: 16 Steps to Success
Part 1: Knowledge Base Preparation (Steps 1-7)
- Manual Trigger - Starting point for base creation
- HTTP Request - Download Yamaha brochure from public URL
- Extract from File - Extract text from PDF
- Recursive Character Text Splitter - Split into fragments
- Default Data Loader - Prepare documents
- Embeddings OpenAI - Convert to vectors
- Vector Store Creation - Save in memory
Part 2: WhatsApp Chatbot (Steps 8-16)
- WhatsApp Trigger - Listen for messages
- Switch Logic - Filter message types
- Reply Handler - Responses to unsupported types
- OpenAI Chat Model - Conversational engine
- Window Buffer Memory - Conversation memory
- Vector Store Access - Access to knowledge base
- Vector Store Tool - Search tool
- AI Sales Agent - Main conversational agent
- WhatsApp Reply - Send responses
Advanced Features
Contextual Memory
Each user has individual conversation memory:
Session key: whatsapp-75-<phoneNumber>
Intelligent Filtering
// Check message type
{{$json["messages"][0]["type"]}} === "text"
System Prompt for AI Agent
You are an assistant working for a company who sells Yamaha Powered Loudspeakers and helping the user navigate the product catalog for the year 2024. Your goal is not to facilitate a sale but if the user enquires, direct them to the appropriate website, url or contact information.
Do your best to answer any questions factually. If you don't know the answer or unable to obtain the information from the datastore, then tell the user so.
Requirements and Configuration
Required Credentials:
- WhatsApp Business Account - For communication
- OpenAI API Key - For embeddings and GPT-4
- n8n Instance - Local or cloud
WhatsApp Configuration:
- Webhook for incoming messages
- OAuth authentication
- Message sending permissions
Scaling and Optimization
For Production:
- Change Vector Store to persistent (Qdrant, Pinecone)
- Add media support (images, documents)
- Implement rate limiting
- Monitoring and logs
Operational Costs:
- OpenAI API calls (embeddings + completions)
- WhatsApp Business API fees
- n8n hosting (if cloud)
Example Use Cases
1. E-commerce
- Product question responses
- Availability checking
- Redirect to purchase process
2. Technical Support
- Solving basic problems
- Escalation to specialists
- FAQ knowledge base
3. Lead Generation
- Potential customer qualification
- Contact data collection
- Hot lead handoff to team
Troubleshooting
Common Errors:
- No response - Check WhatsApp credentials
- Wrong embeddings - Verify OpenAI API key
- No memory - Ensure session keys are unique
- Slow responses - Optimize chunk size
Debugging:
// Check message structure
console.log(JSON.stringify($json, null, 2));
Next Steps and Development
Extensions:
- Multi-language support - Different service languages
- Sentiment analysis - Customer mood analysis
- CRM Integration - Connect with sales systems
- Voice messages - Voice message handling
- Rich media responses - Send images, documents
Success Monitoring:
- Number of handled conversations
- Response time
- Customer satisfaction
- Conversion rate
Comprehensive Solution Example: Intelligent Customer Service Assistant Architecture
To illustrate how all these "building blocks" can work together, let's consider the architecture of an intelligent customer service assistant.
Component Description and Data Flow:
- User sends a query via web or chat interface
- n8n receives this query (e.g., via webhook) and passes it to an agent built in LangGraph
- The LangGraph agent analyzes the query. Depending on its content, it might:
- Use the RAG tool to search the knowledge base (e.g., if user asks about product features). Context from Milvus is passed to the LLM
- Use the company API tool to retrieve specific customer data (e.g., if user asks about their order status)
- Directly generate a response using the LLM (e.g., for general questions)
- The LLM (chosen according to needs and budget) generates a response or decision for the agent
- The LangGraph agent passes the formulated response back to n8n
- n8n formats the response and sends it back to the user via the interface
This system allows for flexible conversation management, use of multiple data sources, and automation of many typical customer queries, significantly offloading human agents.
Potential Problems You'll Encounter (and How to Deal with Them)
The road to working AI solutions is rarely paved only with roses. Here are some common challenges:
- Model Hallucinations: LLMs can generate responses that sound plausible but are untrue or not supported by the provided context.
- Solutions: Using RAG (to "ground" the model in facts), precise prompts instructing adherence to context, fact-checking mechanisms (even manual at first), choosing models less prone to hallucinations.
- Vendor Lock-in (e.g., OpenAI): Relying on a single API provider can be risky (changes in pricing, policy, availability).
- Solutions: Using tools like Ollama and open-source models as alternatives or for less critical tasks. Designing applications for easy LLM component replacement (thanks to Langchain's abstractions, this is simpler).
- API Costs: Popular models can be expensive, especially with high traffic.
- Solutions: Monitoring usage (e.g., via LangSmith), choosing cheaper models for appropriate tasks (e.g., Claude 3 Haiku instead of Opus for simple classifications), caching, prompt optimization.
- Dependency and Version Management: The Python and AI ecosystem is dynamic; libraries change frequently.
- Solutions: Using dependency management tools (Poetry, conda), precise versioning, containerization (Docker) for environment consistency.
ROI and Next Steps: How to Turn Knowledge into Real Business Value
After implementing this solution, you will possess skills that can bring tangible benefits to your company.
Examples of ROI (Return on Investment):
- Customer Service Automation: A RAG-based chatbot and agent can reduce response times for typical customer queries from several hours to a few seconds, potentially lowering service costs by 30-50% and increasing customer satisfaction.
- Content Generation: Automating the creation of draft reports, product descriptions, or marketing emails can shorten the time needed for these tasks by 70-80%. If a team spent 20 hours a week on this, the saving is 14-16 hours.
- New Products/Services: The ability to quickly prototype and implement new, intelligent features (e.g., personalized recommendations, an intelligent data analyst for clients) can open up new revenue streams. Sometimes creating an MVP for such a product is a matter of weeks, not quarters.
What specific projects can you undertake now?
- An intelligent Q&A chatbot for the company's internal knowledge base
- A system for automatic tagging and categorization of incoming documents or emails
- A tool for generating personalized meeting summaries from transcripts
- A simple agent for online research on a given topic
Summary
WhatsApp chatbot with n8n is a powerful automation tool that can significantly improve customer service while reducing operational costs. By leveraging the latest AI and vector storage technologies, you can create an intelligent assistant that not only answers questions but truly understands the context and needs of your customers.
The key to success is gradual implementation, testing with a small group of users, and iterative improvement based on feedback. Over time, your chatbot will become an invaluable member of your customer service team.
